Product description

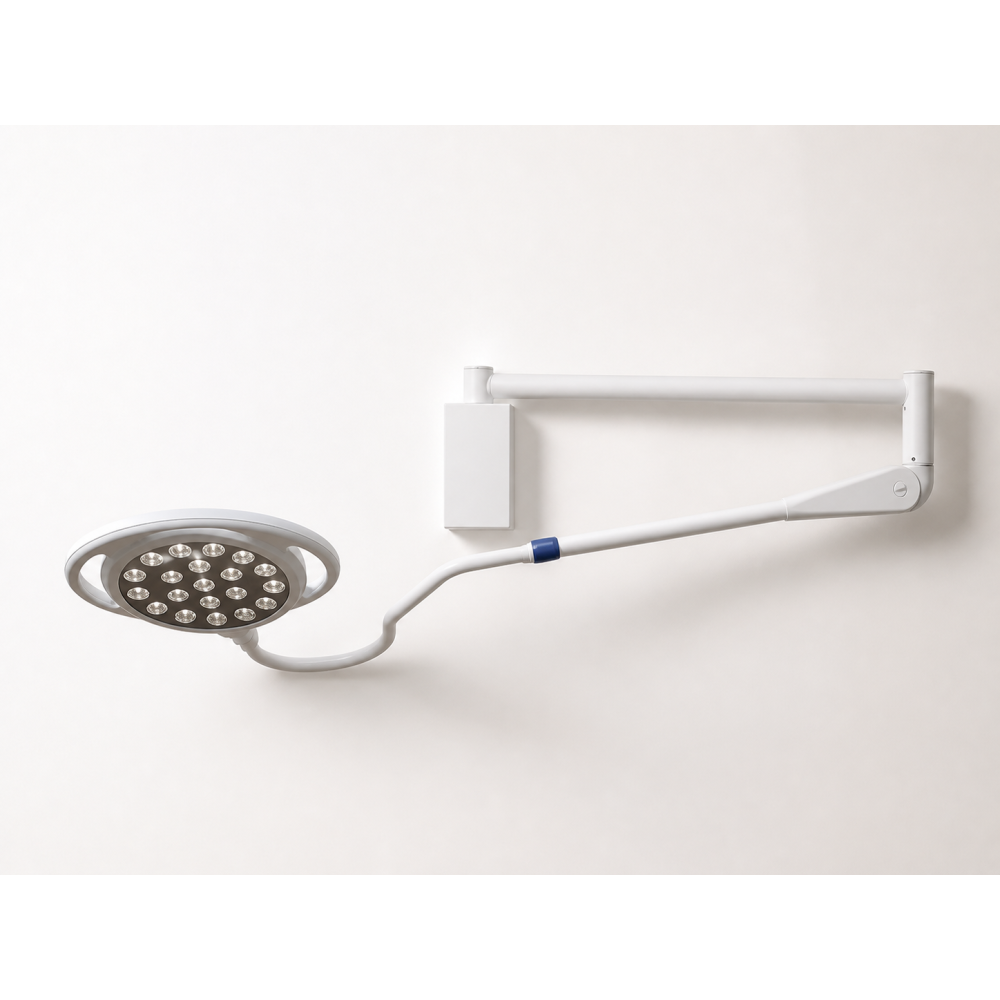

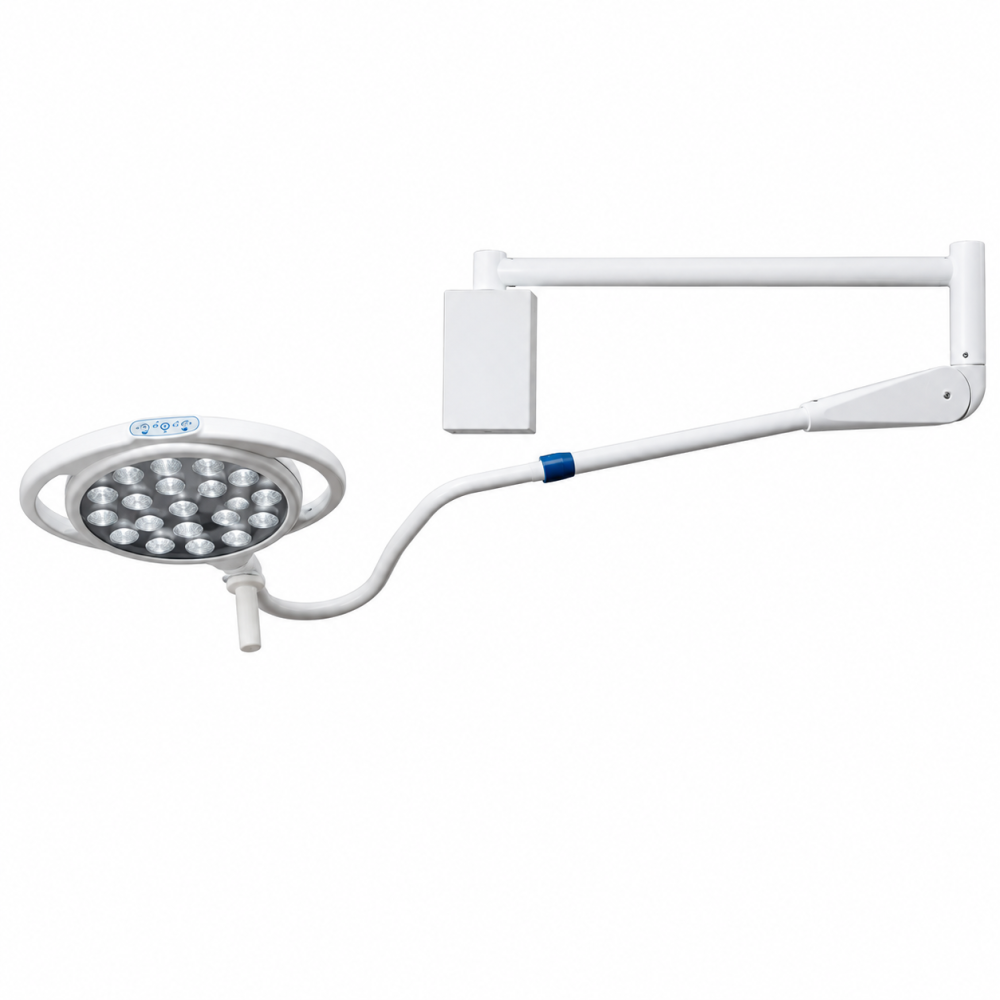

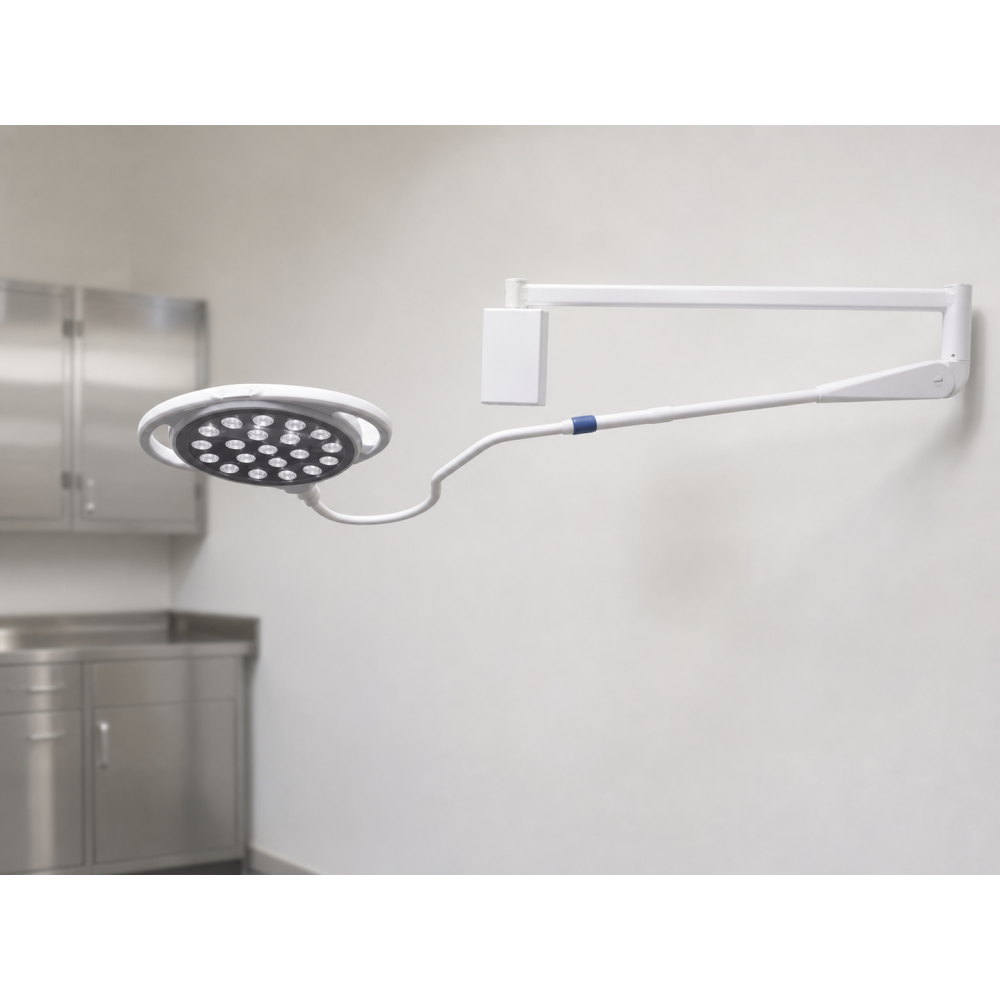

The wall-mounted YDE-300 LED operating lamp is a compact and efficient surgical light source intended for small and medium-sized operating theatres, treatment rooms and veterinary clinics. Wall mounting saves space and provides full freedom of movement thanks to an adjustable rotating arm.
Equipped with a high-grade Osram LEDchip, the lamp offers intense, even light with low power consumption of only 13 W. An optical lens with very high light transmittance guarantees uniform, shadowless illumination of the treatment field. The lamp reaches illuminance of 50,000 lux (1 m) and 45,000 lux (0.5 m), enabling precise operations and diagnostic procedures.
With three colour-temperature levels of 3000 K / 4000 K / 5000 K and smooth intensity adjustment from 10–100 %, the user can adapt the character of the light to the procedure. A high colour rendering index of CRI 95 ensures realistic tissue-colour reproduction, increasing the operator's accuracy.
Each LED can be replaced independently, increasing durability and reducing operating costs. The sterile handle is easy to remove and suitable for disinfection. Its lightweight aluminium construction guarantees resistance to damage and ease of cleaning.
- Light source: Osram LED chip (cold surgical light)
- Total power: 13 W
- Head diameter: 240 mm
- Illuminance: 50,000 lx (1 m) / 45,000 lx (0.5 m)
- Brightness adjustment range: 10–100 %
- Colour temperature: 3000 / 4000 / 5000 K
- Colour rendering index (CRI): 95
- Light-field diameter: 180 mm
- Ee/Ec irradiance: 3.4 mW/m²·lux
- Radiant power: 180 W/m²
- Power supply: DC 24 V
- Enclosure material: powder-coated aluminium
- LED service life: ≥ 80,000 h
- Sterile handle: removable, easy to clean
- Mounting type: wall-mounted, 360° rotating arm
The YDE-300 Wall combines high-performance LED illumination with an ergonomic wall-mounted design. Its precise adjustment, high CRI and long LED service life make it an excellent solution for clinics, treatment rooms and veterinary facilities requiring durable and reliable surgical illumination.
